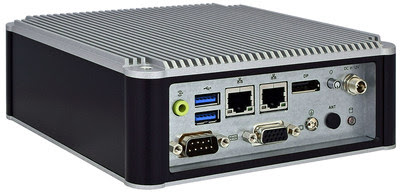

WinSystems has rolled out its SYS-ITX-N-3800 encased computing platform. Based on the Intel Atom E-3800 processor, this space-saving packaged CPU offers consistently reliable performance under extended operating temperatures of -25ºC to +60ºC. Inside its 150 mm x 150 mm x 53 mm rugged aluminum enclosure is an efficient mix of processor and practical input/output options.
This system is optimally engineered to satisfy diverse embedded system requirements and easily mount in tight spaces. Processing performance is a solid match for Windows 10 IoT and Linux operating systems, enabling long product life cycle solutions for Industrial IoT, energy management and medical designs.
The versatile SYS-ITX-N-3800 supplies a complete system in a small form factor box that can be easily expanded or configured for different application requirements. It provides superb connectivity with two USB 3.0 host channels, an RS-232/422/485 serial port, VGA and DisplayPort. A half-size Mini-Card connector further extends expansion capabilities. The package also features +12V input power, includes a mounting kit for a 2.5” SATA SSD, and supports fanless operation. And, it is built with the durability required to deliver high-reliability performance within harsh operating environments.
