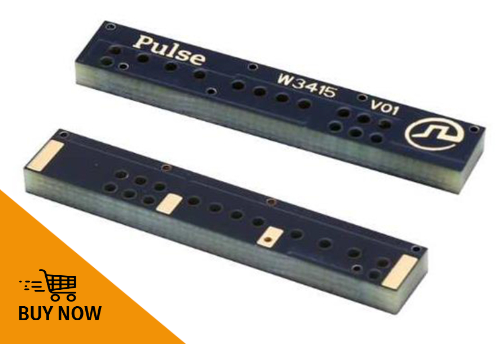

The Composite SMD Antenna W3415 from PulseLarsen with a frequency from 617 to 6.000MHz is perfectly suitable for 4G and innovative 5G IoT applications. The antenna is available at www.rutronik24.com.
By combining all sub 6GHz bands (4G and 5G), the broad band antenna W3415 is ideal for devices that require a high performance compact internal 4G/5G antenna. It delivers a gain of 0 / 2,5dBi. When mounting two antennas onto the radio board, they are suitable for 2 x MiMo (multiple input / multiple output).
The antenna W3415 measures 40x7x3mm and is fully SMT compatible and in tape and reel packaging for automated assembly available at Rutronik. Once unpacked, it has to be assembled within 168 hours (MSL-3, Moisture Sensitivity Level 3).
For more information about PulseLarsen‘s new Antenna for 4G and 5G IoT Applications and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.
