24 / 48Vdc Outputs with ATEX & UL HazLoc Certifications Ruggedized to Railway Shock and Vibration (EN61373) -40°C to +60°C Full Load Operation

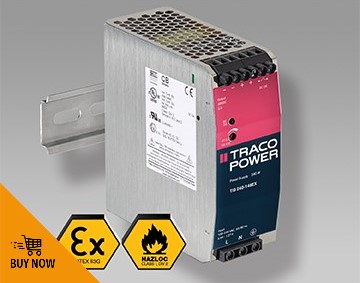

TRACO POWER has announced the release of their TIB 240-EX Family of 240 Watt DIN rail power supplies that are designed for harsh environments & hazardous locations with certifications for ATEX II3G and UL HazLoc Class I / Div 2 standards.
These products are the new vanguard of industrial power featuring: 24 / 48Vdc outputs (-2% ~ +17% VADJ Range); high efficiency operation of 95%; 150% peak power for 4 seconds; and packaged in a ruggedized metal enclosure that is EN61373 qualified to the rigorous railway shock and vibration standards. Protection circuits include back power immunity, short-circuit / overload protection and a DC OK dry signal contact. DC-OK LED indicators on both the front and side panels with optional side panel mounting enable use in flat panels. The product’s reduced heat dissipation enables a -40°C to +60°C full load operating temperature range (up to +70°C operation with only 20% de-rating). Outputs are radio-interference-suppressed to impede radiation at long output lines. This filter reduces the common mode current to within limits of telecommunication ports. The units operate with a high power factor of up to 99% with active power factor correction which also minimizes input inrush current. All models are safety approved to meet UL/EN 60950-1, UL508 listed, EN 600079-0/-7/-15, ATEX II3G and UL HazLoc Class I, Division 2 with EN55032 Class B for both radiated and conducted emissions. High reliability of greater than 1 million hours per IEC 60079-0 is supported by TRACO POWER’s extended 5 year product warranty.
Products are in stock and available through distributors around the globe with manufacturing lead times of 12-14 weeks. Please see www.tracopower.us/tib-ex for specifications, drawings and safety documentation.
