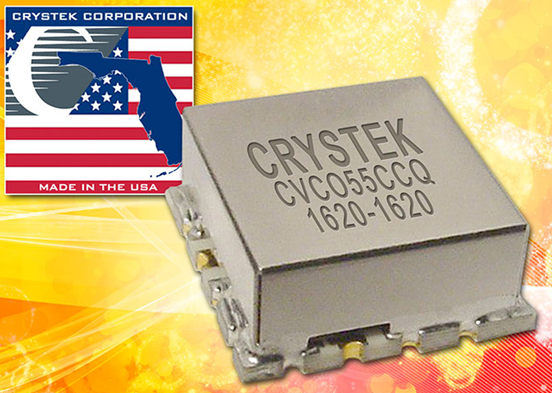

Crystek’s CVCO55CCQ-1620-1620 VCO (Voltage Controlled Oscillator) operates at 1620 MHz with acontrol voltage range of 1.0V~11V. This VCO features a typical phasenoise of -125 dBc/Hz @ 10 kHz offset and has excellent linearity.
Output power is typically 2 dBm. Engineered and manufactured in the USA, the model CVCO55CCQ1620-1620 is packaged in the industry-standard 0.5-in. x 0.5-in.SMD package. Input voltage is 5V, with a max current consumption of 35 mA. Pulling and Pushing are minimized to 0.5 MHz pk-pk and 0.3 MHz/V, respectively. Second harmonic suppression is -15 dBc typical.
The CVCO55CCQ-1620-1620 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations.
For pricing details, contact Crystek Corporation.
