Description:

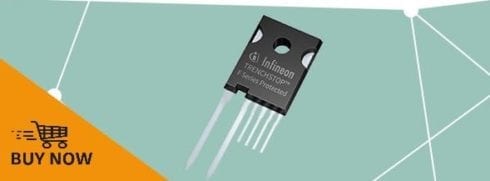

The F Series Protected IGBT combines a 1350 V, 20 A IGBT in RC-H5 technology with a unique protecting gate driver IC together in a TO-247 6-pin package for induction cooking applications.
Summary of Features:
- Reverse conducting IGBT with monolithic body diode designed for soft commutation
- Integrated Driver with
- over-voltage and over-current protection
- Active clamp control circuit
- Programmable over-voltage threshold
- Programmable cycle-by-cycle over-current threshold
- Integrated gate drive with 2 level turn-on current
- Temperature warning
- Over-temperature protection
- VCC UVLO
- Integrated ESD protection and latch immunity on all pins
- TO-247 6-pin package
Benefits:
- Increased overall reliability, reducing costs for replacement/rework
- Reduced board complexity and design-in effort
- Simplified BOM and reduced cost for the total solution
