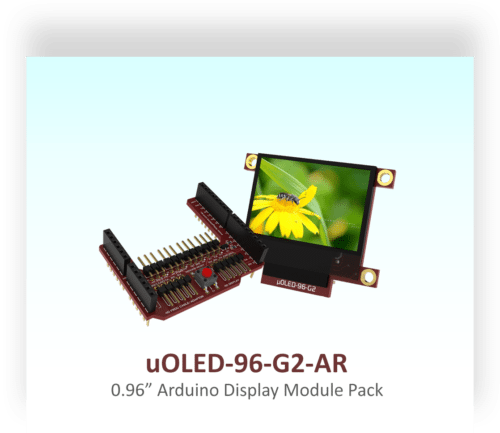

The uOLED-96-G2-AR is an Arduino Display Module Pack, which includes a uOLED-96-G2 0.96″ OLED Display, a 4D Arduino Adaptor Shield and 5 way interface cable.
The uOLED-96-G2-AR customises the uOLED-96-G2 Display specifically for interfacing with the Arduino, to provide a quick and easy interface without any wiring hassles.
The Arduino Display Module Pack enables an Arduino user to quickly connect the 4D Arduino Adaptor Shield to their Arduino, connect the 5 way cable between the Adaptor and the Display Module, and be connected in seconds to start programming their new 4D Systems Display.
The uOLED-96-G2-AR has a comprehensive range of serial commands ready to be received from the Arduino, to draw primitives such as lines, rectangles, circles and text, displaying images, playing sound and logging data to uSD card.
Utilises the Arduino’s UART Serial Port and a single Digital pin.
