Available from Luso Electronics, the RHKW/RHDW series DC/DC converters from P-Duke are ideal for safety critical applications.
The RHKW/RHDW series from P-Duke are high performance DC/DC converters with 3000VAC reinforced isolation with 4.5 mm clearance/ creeping distances for safety critical applications. This next generation of board mountable DC/DC converters has been designed especially for the demanding, ruggedized railway and other such industrial applications where harsh conditions are typical.

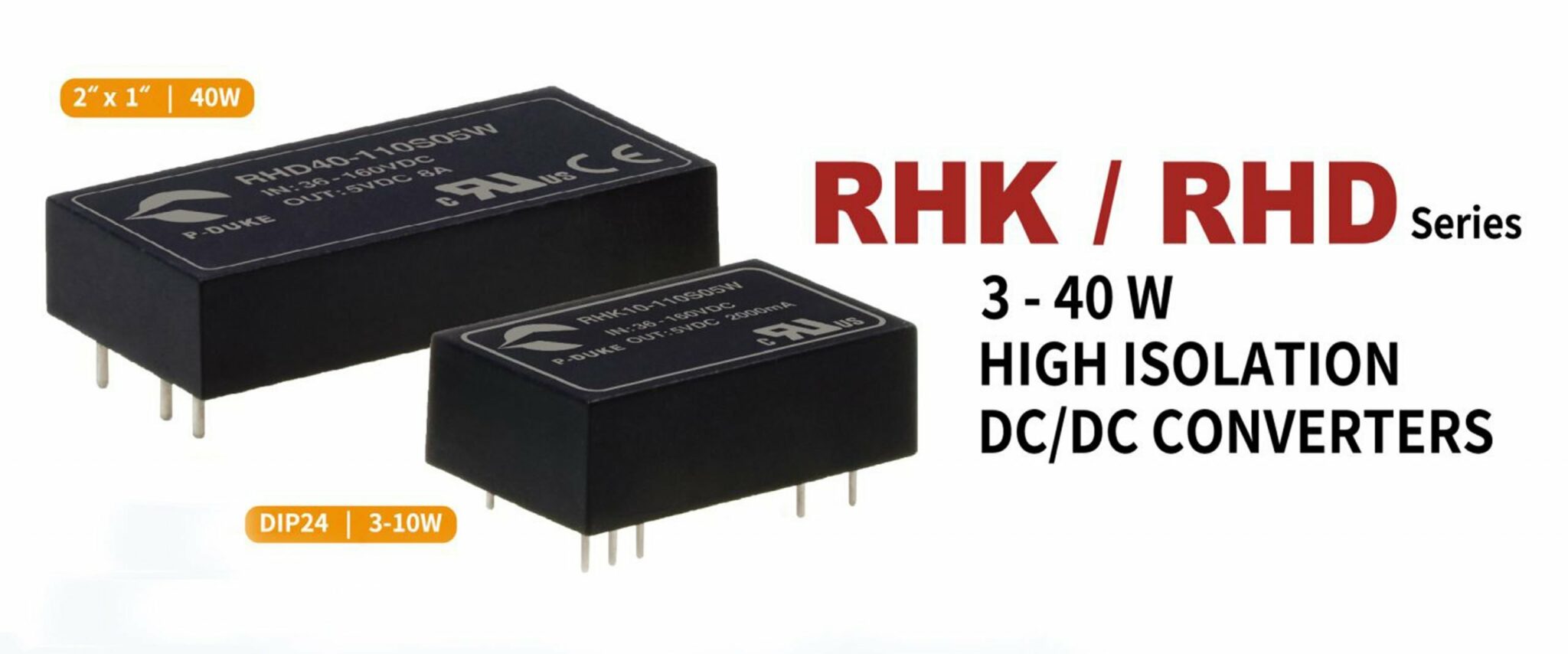

The series consists of 3-40W DC/DC converters with single and dual output models in a DIP24 (3-10W) or 2”x1” (40W) package. They have an input range of 36-160VDC and are equipped with circuits for over/under-voltage protection, over-current and short-circuit and over-temperature protection.
These high-density power converters are realized by using a patented transformer design, which lets the converters perform with an efficiency of up to 90%.
The high dielectric strength plastic housing with high-thermal conductivity, comparable with metal casing, performs the isolation between input-case-output and allows an operating temperature range of -40°C to +105°C.
P-Duke’s team of highly experienced R&D designers have equipped these converters additionally with internal EMI circuits: IEC/EN 55032 Class A and IEC/EN 50121-3-2, which simplifies the design and saves pcb space. This series is certified according to IEC/EN/UL 62368-1, EN 50155 and EN 45545-2.
Additionally, shock and vibration are compliant with EN 61373 and MIL-STD-810F. With an operating altitude of up to 5000 meters, a wide operating ambient temperature of -40°C to +105°C, 36-160VDC input range, makes them very suitable for any safety critical application where a SELV output is mandatory. Examples are Bus Voltages of 72, 96, 110 VDC which need a safety barrier on the secondary side in rolling stocks, in transportation or in harsh industrial environments.
Features
- 3-40 Watt output power
- 4:1 wide input range from 36 to 160VDC
- Built-in EN 55032 EMI Class A filter
- 3000 VAC input to output reinforced insulation
- Operating altitude up to 5000m
- 3-Year warranty
- IEC/ UL/ EN 62368-1, EN 50155 and EN 45545-2 safety approval
Our product specialists are on hand to assist with product selection and guide you through the design cycle. We offer technical and commercial support.
