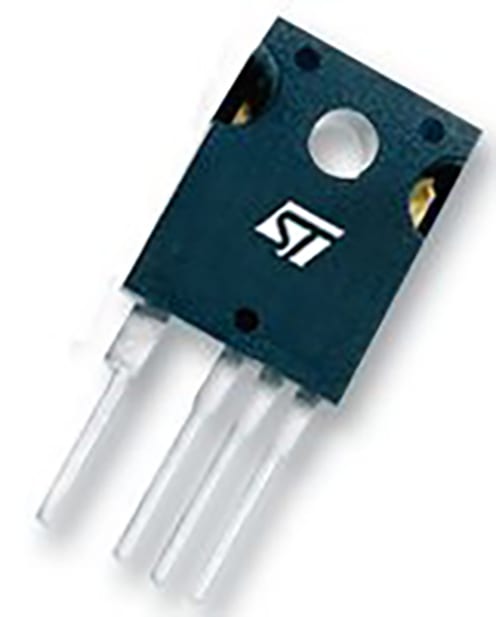

Trench gate field-stop IGBT, HB series 650 V, 40 A high speed in a TO247-4 package

This product is available from a number of ECIA authorized distributors, click the buy now button below to compare real-time pricing and stock information
Click to purchase parts now

This device is an IGBT developed using an advanced proprietary trench gate field-stop structure. The device is part of the new HB series of IGBTs, which represents an optimum compromise between conduction and switching loss to maximize the efficiency of any frequency converter. A faster switching event can be achieved by the Kelvin pin, which separates power path from driving signal. Furthermore, the slightly positive VCE(sat) temperature coefficient and very tight parameter distribution result in safer paralleling operation.

Key Features

  • Maximum junction temperature: TJ = 175 °C
  • Kelvin pin
  • Minimized tail current
  • Low saturation voltage: VCE(sat) = 1.6 V (typ.) @ IC = 40 A
  • Tight parameter distribution
  • Safe paralleling
  • Low thermal resistance
  • Very fast soft recovery antiparallel diode
