Traco Power offers power supplies for medical applications


If you search for reliable and high-quality solutions for your medical devices TPP series of AC/DC converters will not fail you. SOS electronic (authorized distributor of Traco Power) is aware that for achieving outstanding parameters of medical power supplies, the accurate design and manufacturing is a must.

These are the main advantages of AC/DC converters of the TPP Traco Power series:

  • Designed for medical applications
  • High reliability
  • Products with rated powers from 15 W to 450 W
  • 5- year warranty
  • Compact design
  • Meet all current medical standards

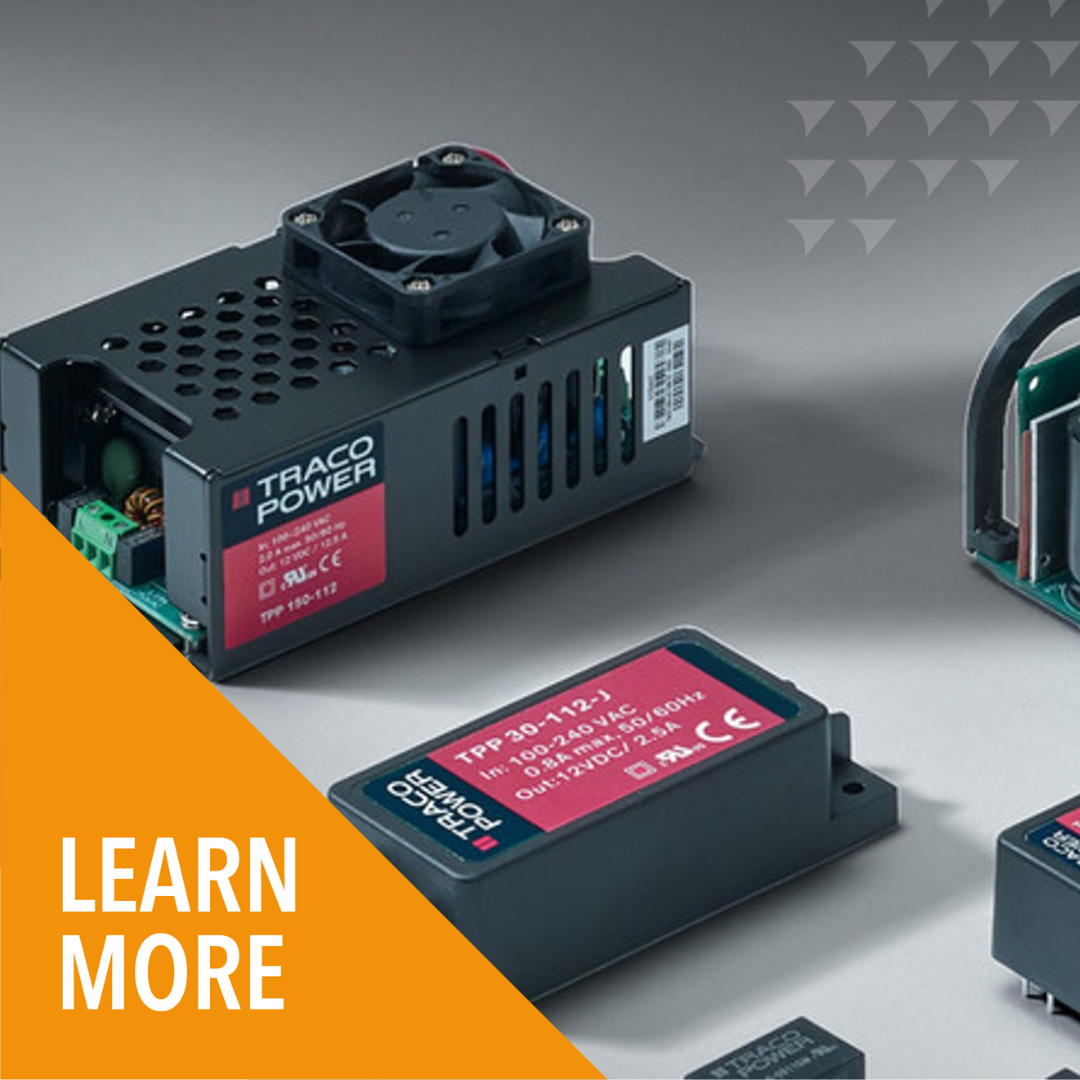

TPP series of AC/DC converters

Products of the TPP series feature a reinforced double I/O isolation system according to medical safety standards IEC/EN/ES 60601-1 3rd edition for 2x MOPP approved for an operating altitude of 5000 m.

The earth leakage current is lower than 75 µA, which makes the units suitable for BF (body floating) applications. The excellent efficiency of up to 91.5% offers a high-power density. The full load operating temperature range covers –40°C to +60°C while it goes up to +85°C with 50% load derating.

Some high-power units are equipped with a fan in order to ensure better cooling at high loads. The units operate in compliance with the medical EMC emission and immunity levels according to the latest standard IEC 60601-1-2 4th edition.

Main features of TPP series for medical use:

  • Extended operating temperature range –25°C to +85°C
  • Certified according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP
  • Certified according to IEC/EN/UL 60950-1
  • Ready to meet ErP directive, no-load power consumption (max 0.3 W)
  • Protection classes I and II
  • EMC compliance to IEC/EN/ES 60601-2 4th edition
  • Highest efficiency up to 92% (typ.)
  • Leakage current (< 100 µA) dedicated for BF applications
  • 5-year product warranty
  • Operation up to an altitude of 5000m

Applications:

  • A wide range of diagnostic and therapeutic devices in medicine such as anesthetic devices, breathing devices, ECG, etc.
  • BF medical equipment such as blood pressure monitors, incubators and ultrasound devices.
  • Equipment for veterinary clinics.
  • Dental technology and equipment for dental clinics.
  • Germicidal emitters, etc.

For medical applications, Traco Power TPP series of AC/DC converters  are available in power ratings starting from 15W (TPP15) up to 450W (TPP450) and in four versions depending on the mounting method.

Detailed technical and business information on prices and current availability can be found on website and e-shop of SOS electronic. If you are interested in a specific product or you are hesitant in choosing a suitable solution, they will be happy to advise you at [email protected].

www.soselectronic.com
