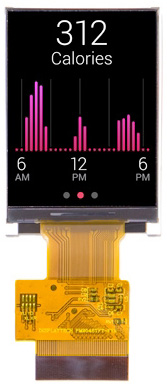

The DT022CTFT is a 2.2 inch TFT LCD module with 240 x 320 RGB resolution. This LCD module is the only high resolution 2.2” TFT on the market that is designed specifically to fit 1U rack mount equipment. The a-Si TFT LCD uses a single chip driver (Ilitek ILI9341) that provides a full color display mode of 262K colors. This slim 2.2” LCD module includes a color TFT LCD, a driver IC, FPC, and a white LED backlight unit.
240×320 2.2″ TFT Display designed to Fit 1U Height for Rack Mount Equipment
| Diagonal Screen Size | 2.2 inch |
| Display Resolution | 240 (RGB) x 320 |
| Viewing Angle | 6 o’clock |
| Interface Type | RGB or MCU |
| Brightness | 330 cd/m2 |
| LCD Driver IC | Ilitek ILI9341 |
| Module Size (w x h) | 38.5 x 56.16 mm |
| Active Area (w x h) | 33.84 x 45.12 mm |
| Pixel Size | 0.141 x 0.141 mm |
| Operating Temperature | -20 ~ 70°C |
