The BCH Handheld enclosure series – an ergonomic and flexible solution for control equipment from BCL Enclosures


A new range available from BCL Enclosures, the BCH Handheld Series is designed specifically for housing control equipment and provides a strong, ergonomic and flexible solution suitable for use in many different types of control equipment.



BCH Handheld boxes are robustly moulded in black ABS for strength and durability.   Models with a flush top are suitable for silk screening with customers’ brand name and logo, a service available on request from BCL. As an alternative, there are recessed lid enclosures in the series which are suitable for fitting membranes in.



Many different sizes and configurations are available in the BCH Series – BCH 30/40/50/55 range in size between 96mm long x 61mm wide x 25mm high to 125mm long x 70mm wide x 24mm high, including some models available with a battery connection compartment and battery connector included, plus one variant, BCH 30N, which is 85mm long x 55/40mm wide x 19.5/15.5mm high with PCB points in the top and base.



BCH models 60/65/70 range in size between 111mm long x 64mm wide x 23mm high and 126mm long x 75mm wide x 23mm high.  Certain cases have tapered top lids, while others have rounded tops and bases. End plates are removable.

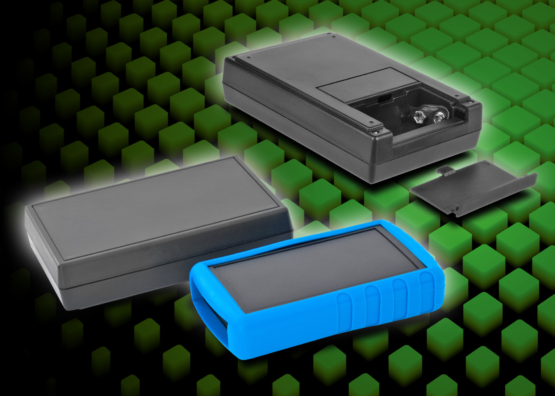

BCH 90 models are medium hand held cases either 146mm long x 91mm wide x 32mm high in black ABS, with battery compartments including battery terminals suitable for four AA batteries or one 9V battery, or alternatively, without battery compartments. The larger cases, BCH 100 models, measure 189mm long x 101mm wide x 29mm high with either flush or recessed lids.  The latter are available in either black or white ABS and have battery compartments sized to fit six AA batteries and include battery terminals.



Covers and surrounds for the BCH 50 and 60 Series provide protection to both the enclosure itself and its equipment.  Available colours are red, blue and orange.  For the two BCH 100 cases, a surround strip is an option, which increases the overall height by 15mm.



BCL Enclosures’ products are manufactured in the UK, which overcomes the supply issues often found with non-UK manufactured items. A high percentage of products are available from stock or on very short lead times.   In addition to the above hand held range, BCL Enclosures offers a very comprehensive range of plastic enclosures and power supply units.  Advice on enclosure specification and a full gamut of custom and customization services are also available.
