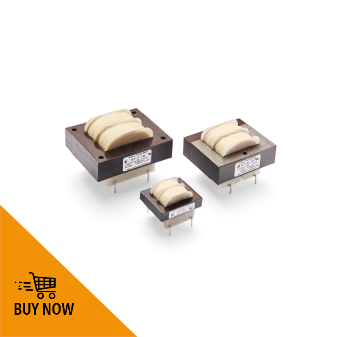

ST & DST – High Isolation Split Bobbin Low Power Transformers

This product/service is available directly from the manufacturer/distributor, click the buy now button below to find out more
Click to purchase parts now

Signal’s ST and DST transformers utilize split bobbin construction that provides superior isolation and low capacitive coupling. The ST and DST come in over 60 standard configurations.

Specifications

  • Power – 1.1 VA to 36 VA
  • Dielectric Strength – 2500 Vrms
  • Primaries – Single or Dual
  • Secondaries – Series or Parallel

Features

  • Split Bobbin
  • Available in 120 standard configurations
  • UL 1446 (E66312)
  • UL Recognized to UL 506
  • Easily Modified
