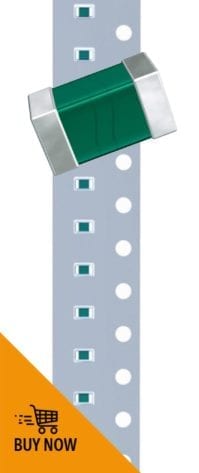

SMT inductors, SIMID series Size 0603 (EIA) and/or 1608 (IEC)

This product is available from a number of ECIA authorized distributors, click the buy now button below to compare real-time pricing and stock information
Click to purchase parts now

Construction
■ Copper-plated ceramic core
■ Laser-cut winding, epoxy-coated
Features
■ Temperature range up to +150 °C
■ High resonance frequency
■ Close inductance tolerance
■ Free of polarization effect
■ High mechanical stability
■ Qualified to AEC-Q200
■ Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D
■ RoHS-compatible
Applications
Resonant circuits, impedance matching for
■ Multimedia
■ Car access systems
■ Wireless communication systems
■ TPMS (Tire Pressure Monitoring System)
■ GPS (Global Positioning System)
■ Digital cameras
Terminals
■ Base material Al2O3 ceramic with Cu layer
■ Layer composition Ni, Sn (lead-free)
■ Electro-plated
