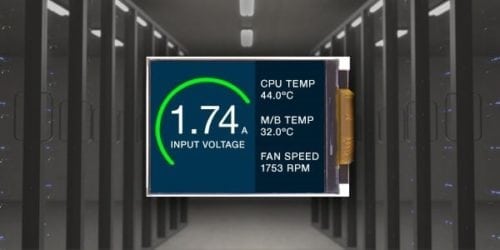

The DT022CTFT is a 2.2 inch TFT LCD module with 240 x 320 RGB resolution. This LCD module is the only high resolution 2.2” TFT on the market that is designed specifically to fit 1U rack mount equipment. The a-Si TFT LCD uses a single chip driver (Ilitek ILI9341) that provides a full color display mode of 262K colors.
This slim 2.2” LCD module includes a color TFT LCD, a driver IC, FPC, and a white LED backlight unit. View the data sheet and additional resources for the DT022CTFT display below.
Technical Information
Diagonal Size 2.2 in
Resolution 240 (RGB) x 320
Module Size 38.5 mm (W) x 56.16 mm (H)
Active Area 33.84 mm x 45.12 mm
Pixel Size 0.141 mm x 0.141 mm
Viewing Direction 6 o’clock
Interface Type RGB / MCU
