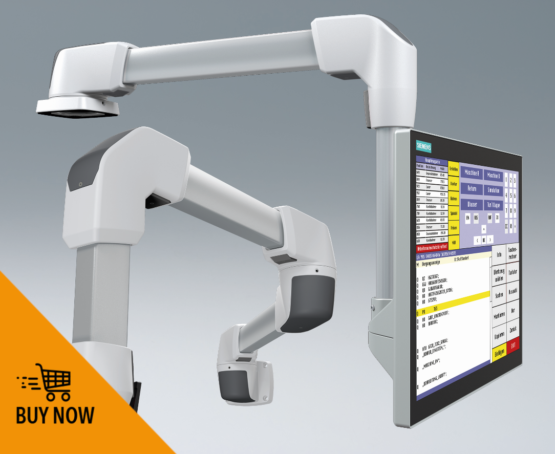

ROLEC’s new taraSMART (IP 54) modular suspension arms offer advanced technical features at a lower price point. They are similar to ROLEC’s proven profiPLUS arms but are simpler and more cost-effective.
Elegant and robust taraSMART is designed to support light-to-medium displays, HMI enclosures and panel PCs weighing up to around 45 kg. The arms are ideal for a wide range of applications including smart factory automation, modern machine control systems, robotics, process automation, medical and laboratory technology and information stations.
This easy-to-install modular suspension arm system offers a choice of rectangular or round aluminium profiles – both with generous capacity for routing HDMI, DVI and USB cables and network plugs. Each of the two profile shapes is available in four lengths: 250, 500, 750 and 1,000 mm. The round profiles are Ø48 mm, enabling standard panel PCs from leading manufacturers to be fitted without the need for extra adapters.
There are four couplings – all of which can be specified for pivoting, hanging and upright installations – and six system elements (comprising a base, two elbows, a socket joint, wall joint and intermediate joint). Horizontal alignment of the complete system assembly is possible at all joints.
All the couplings and system elements are diecast from aluminium silicon alloy (G Al Si 12). The profiles are manufactured from silver-anodised extruded aluminium. All diecast elements are powder coated in light grey (RAL 7035) with plastic covers in anthracite grey (RAL 7016) as standard. Other colours can be specified as an option.
Customisation services also include CNC machining, printing, engraving/laser engraving and assembly.
For more information, view the ROLEC website: https://www.rolec-enclosures.co.uk/en/suspension-arm-systems/tarasmart/
