Consists of a half-bridge suitable for voltages up to 1 kV and a fully-isolated driver stage with isolated power supplies
Richardson RFPD, Inc. announced the availability and full design support capabilities for a new reference design from RECOM Power, Inc. (RECOM).

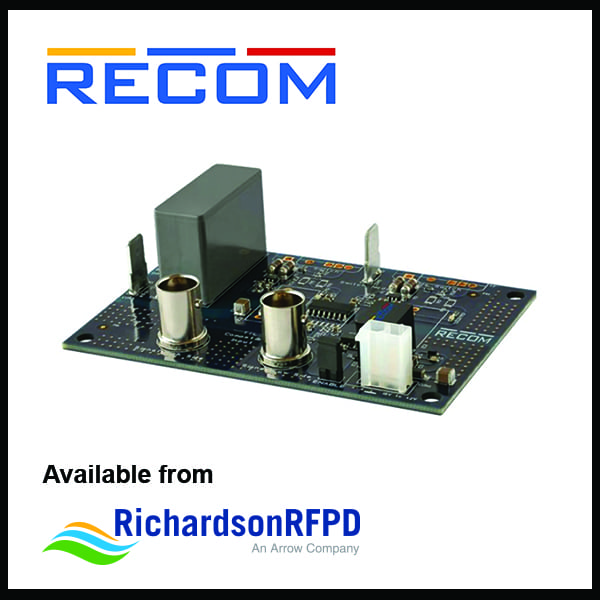

The R-REF01-HB reference design consists of a half-bridge suitable for voltages up to 1kV and a fully-isolated driver stage with isolated power supplies for the low-side and the high-side switching transistors. It is suitable for single-gate drive supply voltages as low as +4 V and dual-gate drive supply voltages as high as +20 V / -5 V (30 V max), with no maximum duty cycle limitations.
The new reference design is fitted with an Si8273 gate driver but can be used with any pin-compatible gate driver with a PWM input or for gate driver ICs with reinforced isolation.
The R-REF01-HB can easily be configured for a variety of topologies, including LLC half-bridge, asymmetric duty cycle half-bridge (forward and flyback), active clamp half-bridge (forward and flyback), full-bridge, phase-shifted full-bridge, 3-phase B6 bridge, NPC B6 bridge (additional driving circuit for NPC required), double pulse test, synchronous boost converter, and synchronous buck converter.
Additional key features of the R-REF01-HB include:
- TTL-compatible signal input
- Single 15 V to 42 V supply
- Shoot-through protection
- Optimized for very high switching speed
- 2.5 kV continuous input-to-output isolation
- High gate drive currents (up to 10 A source and sink)
To find more information or to purchase this product today online, please visit the R-REF01-HB webpage. The device is also available by calling 1-800-737-6937 (within North America); or please find a local sales engineer (worldwide) at Local Sales Support. To learn about additional products from RECOM, please visit the RECOM storefront webpage.
