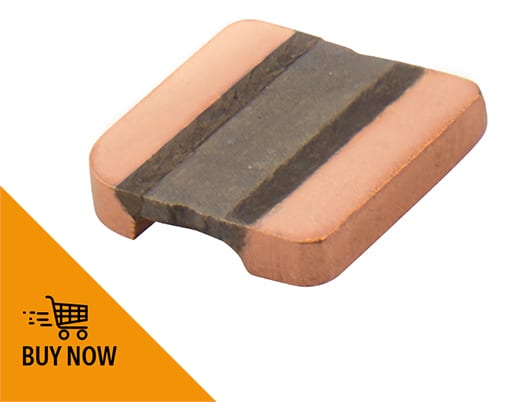

This new BVF series of precision shunt resistors offers maximum performance, including excellent long-term stability, in a miniature surface-mount package, making them ideal for high current sense applications.
Product Features
- Constant current up to 55 A (1 mOhm)
- Resistance values of 0.001Ω and 0.0015Ω
- 3 W power rating up to 145 °C
- Tolerances of ±1.0% and ±5.0%
- Two terminal configuration
- Excellent long-term stability
- High application temperature range -65 to +175 °C
- RoHS 2011/65/EU compliant
- Max. solder temperature up to 350 °C / 30 sec
- 1213 chip size
- AEC-Q200 qualified
Applications
- Current sensor for power hybrid applications
- High current applications for the automotive market
- Frequency converters
- Power modules
For further information on the BVF series including the datasheet, please click here.
For further details of Isa full range of low ohmic, precision and power resistors including through-hole and surface-mount, please click here
