Plessey launches a microLED Direct-Drive Display Platform


Plessey, an embedded technologies developer at the forefront of microLED technology for augmented and mixed reality (AR/MR) display applications has introduced a microLED Direct-Drive display platform and development kit, based on its proprietary monolithic GaN-on-Silicon technology.

Plessey’s Direct-Drive displays provide OEM’s and product developers with a solution to retrofit current products or develop new concept designs, around a compact, flexible and highly efficient microLED display.

Direct-Drive targets specialised applications that require symbolic content, instead of individually addressed pixelized content. Due to the small form factor of the Direct-Drive display, it can be easily integrated into smart glasses, and head-mounted displays for navigation, sport & leisure, and optical instruments.

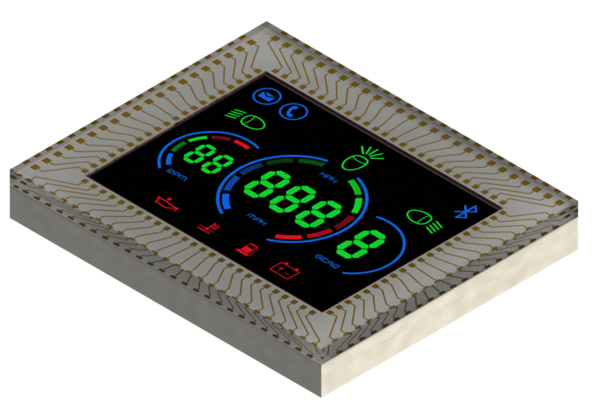

The symbolic content is fully customizable using monochrome or fully colourised segments with pixel capabilities down to 2-micron, allowing for ultra-fine, ultra-high-resolution detail. The display is self-emissive, and it can be driven directly from an external source, requiring no backplane which simplifies the manufacturing process and improves power consumption.

The Direct-Drive development kit is a starter package designed to be a fast, easy and scalable platform allowing developers to explore, evaluate and interact with small-form factor microLED displays.



Direct-Drive will come ready to plug and play, and will include:

  • Direct-Drive display (Less than 5x5mm);
  • Embedded driver with open-source firmware;
  • The driver allows the die to be driven at up to 2A;
  • ATMEGA processor;
  • Rechargeable (USB), ultra-small battery;
  • Integrated Bluetooth connection;
  • Available protocols: I2C/UART/SDI/USB;
  • Technical documentation to support integration.

Dr Samir Mezouari, Optical Engineering Manager at Plessey said:

“With a total input power of 250 mW, Plessey’s native green segments can emit 2 million nits of brightness. For AR applications, the Direct-Drive displays can achieve a much higher brightness than OLED with a power consumption as low as 50 mW, allowing daytime viewing and a longer battery life.”

The Direct-Drive development kits will be available to order at CES 2020 and are targeted toward keen display technology enthusiasts and system engineers looking for a microLED display solution to enhance their products.

Plessey will be discussing their innovative microLED display solutions and demonstrating their Active-Matrix and Direct-Drive solutions at CES 2020 on booth 21861, South Hall 1, LVCC. The company is currently progressing with their technology roadmap and delivering on customer projects for a range of consumer and enterprise applications.
