600 V and 1200 V Devices Increase Efficiency in Automotive, Solar, and UPS Applications.
Vishay Intertechnology, Inc. (NYSE: VSH) today introduced 15 new FRED Pt®Gen 5 600 V and 1200 VHyperfast and Ultrafast rectifiers in the compact SOT-227 package. Offering the best conduction and switching loss trade-off for devices in their class, the Vishay Semiconductors rectifiers are designed to increase the efficiency of high frequency converters and of soft-switched or resonant designs.
Matched to operate with MOSFETs or high speed IGBTs, the devices released today are optimized for PFC and output rectification stages for EV / HEV battery charging stations, booster stages for solar inverters, and UPS. For these applications, the rectifiers offer lower conduction losses than previous-generation devices, while maintaining low reverse recovery losses. In addition, the semiconductor in the SOT-227 package is isolated from the copper base plate, allowing for common heatsinks and compact assemblies to be built.
The devices offer current capability of 30 A at 600 V in the single-phase bridge configuration and 60 A to 300 A at 600 V and 1200 V in the dual-diode configuration. The rectifiers are available in X-type Hyperfast and H-type Ultrafast speed classes, with H-type devices offering the advantage of lower conduction losses and X-type devices featuring faster recovery times. The components offer high temperature operation to +175 °C.

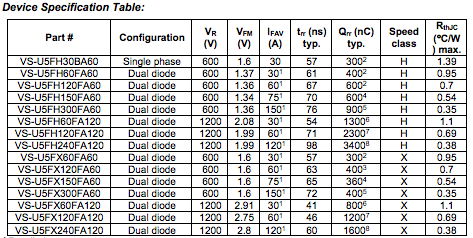

1Per diode
2IF= 30 A, dIF/dt = 1000 A/μs, VR= 400 V, TJ= 25 °C
3IF= 60 A, dIF/dt = 1000 A/μs, VR= 400 V, TJ= 25 °C
4IF= 75 A, dIF/dt = 1000 A/μs, VR= 400 V, TJ= 25 °C
5IF= 150 A, dIF/dt = 1000 A/μs, VR= 400 V, TJ= 25 °C
6IF= 30 A, dIF/dt = 1000 A/μs, VR= 800 V, TJ= 25 °C
7IF= 60 A, dIF/dt = 1000 A/μs, VR= 800 V, TJ= 25 °C
8IF= 120 A, dIF/dt = 1000 A/μs, VR= 800 V, TJ= 25 °C
Samples quantities of the new FRED Pt rectifiers are available now. Production quantities are available with lead times of 26 weeks.
