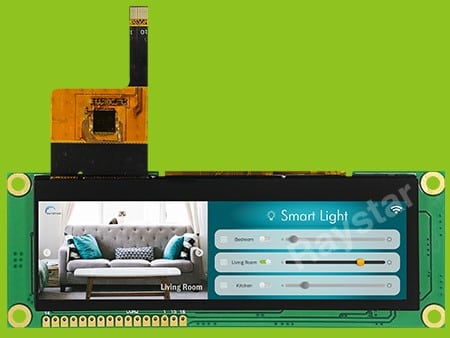

RFS390Q-EIW-DBG is an extended model of 3.9” RFS390B Bar TFT-LCD display built in with SSD1963 controller board plus a 36 pin-out connector which we called Q series Family. RFS390Q-EIW-DBG model is featured with resolution 480×128 pixels and having projected capacitive touch screen (PCAP) on module, it supports digital 8080 family MPU 8bit/16bit interface (MCU interface). The capacitive touch panel IC is CYTMA568 or equivalent. Also, we already defined pin no. 33 ~ 36 as backlight supply on this SSD1963 controller board; therefore, there is no need to design extra backlight circuit.
RFS390Q model is a color TFT module with PCAP; its luminance is 400 nits; contrast ratio of 500:1. It is an ideal upgrade solution for monochrome STN RC1602E to color TFT display with touch screen since both two items have a similar outline dimension of 122.0 x 44.0 mm (PCB outline).
RFS390Q-EIW-DBG is your perfect display for home automation applications.
Specification:
- Size : 3.5 inch
- Dot Matrix : 320 × RGB × 240 (TFT) dots
- Module dimension : 76.84 (W) × 63.84 (H) × 3.27 (D) mm
- Active area : 70.08 × 52.56 mm
- Dot pitch : 0.073 × 0.219 mm
- LCD type : TFT, Normally White, Transmissive
- View Direction : 12 o’clock
- Gray Scale Inversion Direction : 6 o’clock
- Interface : SPI / RGB / MCU
- Aspect Ratio : 4:3
- Backlight Type : LED, Normally White
- IC : SSD2119
- Touch Panel : Without Touch Panel or PCAP/RTP option
- Surface : Anti-Glare
