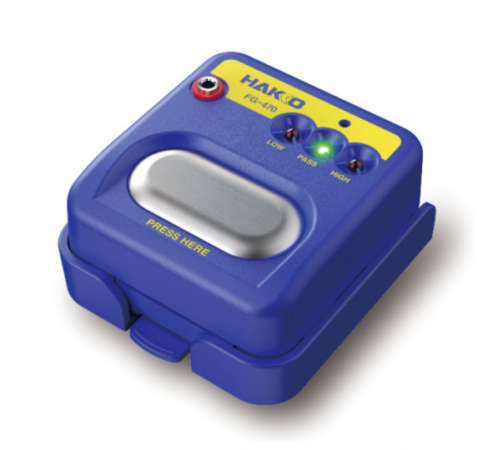

New HAKKO FG-470 System Tester

The NEW Hakko FG-470 Wrist Strap Tester, available as of May 1, 2019, replaces the discontinued Hakko 498 Wrist Strap Tester. The FG-470 functions exactly like the 498, but it sports a fresh, new look. It quickly and simply checks for wrist straps and grounding wires, and the contact resistance between the wrist strap and the skin. This wrist strap tester can be used anywhere to quickly and easily check wrist strap performance. Furthermore, the FG-470, which uses the 9V battery, ensures employee safety and eliminates product defects caused by static electricity.



Model No.: FG-470

Power Supply: 9V battery

Indicators: LOW (R < 800kΩ) | PASS (800kΩ ≤ R ≤ 9MΩ) | HIGH (R > 9MΩ)

Accuracy: 800kΩ +10%/-0% | 9MΩ +0%/-10%

Battery Life Approx.: 50,000 tests

Grounding Wire: 1 m (Included)

Operating Environment: 0 to 40°C (32 to 104°F) 20 to 90% RH (w/o condensation)

Dimensions: (W x H x D) 85 x 44 x 90 mm (3.35 x 1.73 x 3.54 in.)

With mounting holder -> 92 x 48 x 97 mm (3.62 x 1.89 x 3.82 in.)

Weight*: 120 g (0.26 lb.)

With mounting holder-> 160 g (0.35 lb.)

* Without battery
