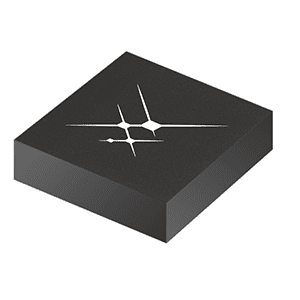

Skyworks is pleased to introduce the SKY66118-11 and the SKY66407-11, 2.4 GHz front-end modules (FEMs) for Bluetooth® Internet of Things (IoT) applications including smartwatches, trackers, connected home systems, wireless and gaming headsets and more.
These low power solutions significantly improve range (more than 2X) when compared to standalone system-on-chip implementations, and efficiently deliver more power to the antenna, thereby minimizing or potentially eliminating any required antenna matching network. The FEMs also integrate power amplifier (PA) output matching, harmonic filtering, and bypass path switching which enable flexible and innovative end product designs for space-constrained IoT applications.
Product Features:
- PA with bypass path architecture
- Three modes of operation (transmit mode, bypass mode, and sleep mode)
- Wide supply range supporting a direct battery connection
- Excellent adjacent channel power (ACP) performance with Bluetooth® Enhanced Data Rate modulations
- Extremely low current consumption
- SKY66118-11, 55mA @ 3V, +14 dBm
- SKY66407-11, 13mA @ 1.8V, +9.5 dBm
- Industry leading efficiency, which is ideal for POE applications
- Compact 2.5 x 2.5 package for smaller footprint
