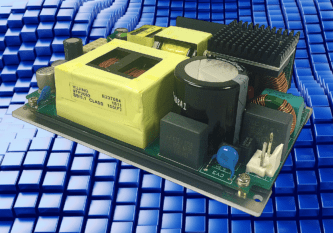

FiDUS Power, the technical power supply distributor specializing in innovative solutions and new products that benefit system designers as they seek to differentiate their end products, has launched a new series of rugged, robust 450W AC/DC power supplies in the miniature 3” x 5″ footprint. The use of high-performance components and a reinforced double I/O isolation system suit the supplies for both industrial and medical applications.
With an extended temperature range of -40°C to +85°C (with derating), the new supplies suit space-restricted, thermally-challenging industrial applications, and medical environments where audible fan noise must be avoided. Earth leakage current is below 100μA which suits the units for BF (body floating) applications.
The new PSUs feature efficiency levels of up to 94%. Other features include 5VDC standby output, , 12VDC aux output, Remote On/Off and Power Good Signal. Open frame, enclosed, end fan and top fan versions are available. They are very flexible offering a wide range of 7 different output voltages from 12 to 53VDC and a +/-8% output adjustment. Units are certified to IEC/EN/ES 60601-1 3rd edition for 2xMOPP and IEC/EN/UL 62368-1, and pass EMC compliance regulations to IEC/EN/ES 60601-2 4th edition.
Comments Mark Gibbons, Engineering Manager at FiDUS Power: “Forced air cooling enables full load operation between -40°C and +50°C. This is derated to 50% load at 85°C. Natural convection-cooling will deliver 320W up to +50°C and 150W at +85°C. Therefore, medical equipment can run in silent mode as there is no need to use a cooling fan.” A variable fan speed controller output simplifies control if an external fan is required.
As with most FiDUS power supplies, free engineering samples can be delivered from stock on short lead-times, and all models are backed by the company’s 5-year warranty.
About FiDUS Power
The company was founded in 2015, and its directors have amassed over 50 years’ experience in specifying and sourcing power products from around the globe. The company leverages this expertise to work with the best product design engineers and trusted manufacturing partners worldwide to develop innovative products, driving efficiency upwards, reducing size and decreasing costs. Its ISO9001 (2015) accredited manufacturing partners have world class facilities, guaranteeing high quality and enabling FiDUS Power to offer a 5-year warrantee on all its products.
