The multi-pixel gas sensor platform SGP creates new possibilities for the measurement of indoor air quality. The SGP offers a complete gas sensor system integrated into a very small 2.45 × 2.45 × 0.9 mm3 DFN package featuring an I2C interface and fully calibrated air quality output signals.
Sensirion’s MOXSens® Technology provides the SGP with an unmatched robustness against contamination by siloxanes resulting in unique long-term stability and accuracy. The SGP further combines multiple metal-oxide sensing elements − the pixels – on one chip to provide more detailed air quality signals. The unprecedented combination of long-term stability and multi-pixel technology makes the SGP a perfect choice for indoor air quality monitoring in mobile, smart home and appliance applications.
Click here to buy the gas sensor SGP from our distributors.

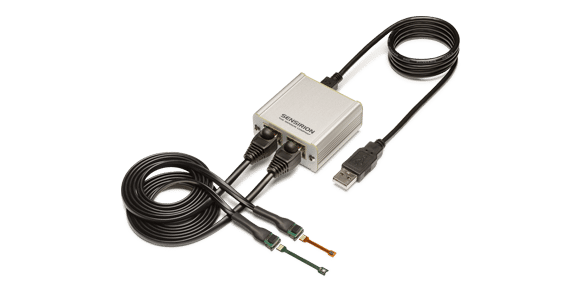

Test Our Environmental Sensors with Sensirion’s Evaluation Kits
With plug-and-play hardware, user-friendly viewer software and compatibility with all environmental sensors, SEK-Environmental Sensing makes evaluation easier and faster than ever before. This allows our customers to focus on developing innovative sensor applications.

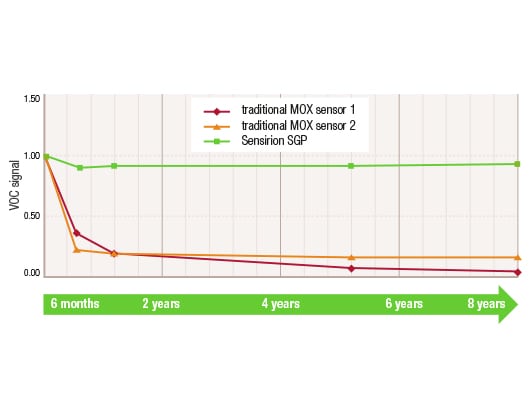

Long-Term Stability of Metal-Oxide Gas Sensors
Traditional metal-oxide gas sensors suffer from poor long-term stability caused through irreversible contamination by siloxanes.
Siloxanes are everywhere
- Indoor environments
- «Most abundant VOC emitted by humans»
- Consumer products
Siloxanes destroy metal-oxide sensors
- Significant loss of VOC sensitivity
- Strong increase of response time
Solution
Sensirion’s proprietary MOXSens® Technology provides the SGP with an unmatched robustness against siloxanes, resulting in unique long-term stabilityand accuracy.
