Ultra Small Coaxial Connectors
MHF RF connectors are ultra miniature coaxial connector jacks that provide a controlled 50-ohm impedance connection while taking up a minimum of PCB space. Making the MHF RF connectors ideal for extremely dense product packaging requirements. They are designed for very few mating cycles, and provide repeatable electrical performance from DC to 6GHz. The ultra miniature coaxial connector jacks are compatible with Hirose U.FL and IPEX MHF1 Series connectors.

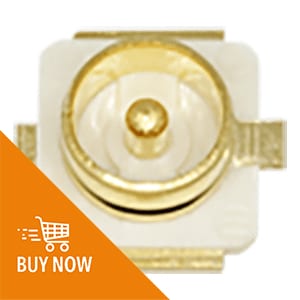

The body material of the snap-on MHF Straight Surface Mount Jack consists of copper alloy and gold contact plating.
The connectors operate in a temperature range from -40°C to +90°C.
