KOE 10.1-inch TFT display suitable for harsh environments


New Rugged+ WXGA display offers high brightness and high contrast

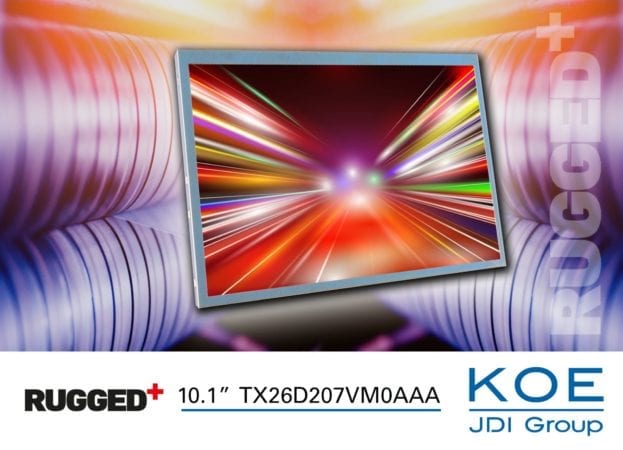

Industrial LCD manufacturer KOE (Kaohsiung Opto Electronics) have announced the introduction of a new 10.1-inch Rugged+ TFT display module. The TX26D207VM0AAA features  WXGA (1280 x 800 pixels) resolution, a 16:9 wide aspect ratio, IPS (in-plane switching) technology which provides excellent image uniformity when viewed from any viewing angle, and an extended operating temperature range.

Designed for use in human-machine interface applications, IPS display technology delivers exceptional colour saturation and image stability, high contrast and deep black levels with 176° wide viewing angles (vertical and horizontal). The 10.1-inch display features a contrast ratio of 1500:1 and a white LED backlight with a brightness rating of 1000cd/m², built-in dimming control, and a specified 70K hour half-brightness lifetime. These attributes ensure that display images are colourful, crisp and bright.

Jason Tsai, Marketing Manager, KOE, said, “KOE’s latest high resolution 10.1-inch display employs in-plane switching technology, which is renowned for providing exceptional optical performance with highly consistent colour reproduction and wide viewing angles. Additionally, our Rugged+ displays have been specifically developed to have robust mechanical, electrical and environmental characteristics that are highly resistant to vibration, shock, electro-static discharge and temperature changes.”

The 20-pin LVDS data interface supports 8-bit RGB which enables a colour palette of up to 16.7M colours. The 10.1-inch display module has mechanical outline dimensions of 231mm (w) x 153.5mm (h) x 11.1mm (d) and an active display area of 217.3mm (w) x 135.8mm (h). An operating temperature range of -30°C to +85°C and storage temperature range of -40°C to +90°C is supported.

The optical and environmental specifications of KOE’s Rugged+ display modules are derived from the same demanding standards employed in automotive specification display modules. The 10.1-inch Rugged display has been designed and developed for use under extreme temperature, mechanical shock and vibration environments where guaranteed and consistent display operation is essential.

KOE’s Rugged+ TFT display modules are suitable for use in high reliability industrial, process control, in-vehicle, medical, digital signage, aerospace and marine applications.The new 10.1-inch Rugged+ TX26D207VM0AAA TFT display module is available immediately from KOE’s sales channel distribution partners.
