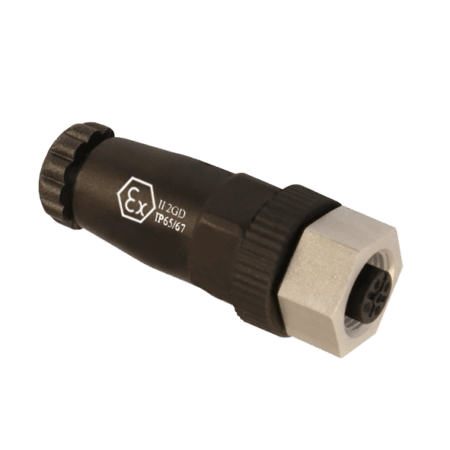

These ATEX These ATEX 94/9/CE servo connectors from In2Connect are available as field attachable units with solder or screw contacts.
Based on the M8 and M12 threaded coupling connector ranges these field attachable HTP connectors have been designed and manufactured to meet customers’ stringent individual requirements for environmental, electrical and mechanical conditions, whilst conforming to EC Directive 2014/34/EU-ATEX Annex III/Module B (EU-TYPE EXAMINATION # AR16ATEX095X).
They are available in axial M8 format with a plastic housing and in M12 as axial or right angled with plastic or metal body shell and are designed for Zone 1 and 2 applications.
These ATEX Certified M12 connectors from In2Connect are designed to meet IP65/IP67. These connectors have a wide variety of applications and can be found in many Ex industry sectors for use with proximity switches, sensors and interconnection in potentially explosive environmental conditions.
Ex: apparatus intended to be installed in an hazardous location
Gb = equipment protection for use in Zones 1 and 2 for Class II/Division 2 Group Gb applications
2G Gas type II Subdivision C – Hydrogen and Acetylene
2D Dust type III Subdivision C – Conductive dust, tb = dust ignition protected by enclosure
Temperature Class T6 = 85C | T85C: maximum surface temperature
Db: equipment protection for use in dust zone 21 and 22
