Description:

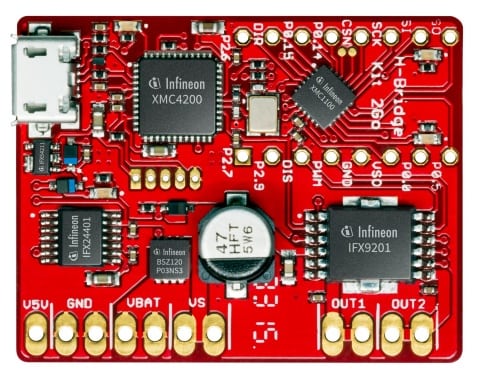

The H-Bridge Kit 2GO is a ready to use evaluation kit. It is fully populated with all electronic components equipped with the H-Bridge IFX9201 combined with XMC 1100 Microcontroller based on ARM® Cortex®-M0 CPU. Realize your own DC motor control. It is designed for the control of DC motors or other inductive loads up to 6 A or up to 36 V of supply.
Target Applications:
- DC motor control for industrial applications
- Home and building automation
- Power tools battery management
- Industrial robotic applications
- Electric toys applications
Parametrics
| Parametrics | H-BRIDGE KIT 2GO |
|---|---|
| Applications | DC motor control for industrial applications ; Home and building automation ; Power tools battery management ; Industrial robotic applications ; Medical applications |
| Configuration | IFX9201SG |
| Family | Motor Driver |
| Input Type | DC |
| Product Description | The H-Bridge Kit 2GO is a ready to use evaluation kit. It is fully populated with all electronic components equipped with the H-Bridge IFX9201 combined with an ARM® Cortex™-M0 CPU. Realize your own DC motor control. It is designed for the control of DC motors or other inductive loads up to 6 A or up to 36 V of Supply |
| Product Name | H-Bridge Kit 2Go |
| Qualification | Industrial |
| Supply Voltage | 36.0 V |
| Target Application | Motor Control & Drives |
| Type | Evaluation Board |
