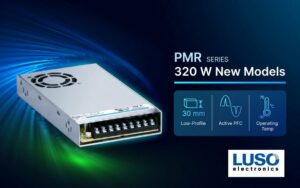

Delta expands its panel mount power supply PMR series, launching the new 320 W model for household appliance applications. The new 320 W model provides a power output of up to 321.6 W and nominal voltage outputs of 12 V / 24 V / 36 V / 48 V. The low-profile form factor design is scalable in limited installation space, such as household appliances, vending machines, control cabinets, and test & measure equipment.
The new 320 W model of the PMR series can operate across a wide operating temperature range from -30°C to +70°C and has a built-in active PFC circuit that provides high power factor values. It conforms to IEC/EN 60335-1, IEC/EN 61558-1, and IEC/EN 61558-2-16 household appliance standards and obtains harmonic current IEC/EN 61000-3-2 Class A and Class D, shock and vibration standard IEC 60068-2, IEC/EN/UL 62368-1 for ICT, and EMI standard EN 55032 Class B. The model is also fully compliant with RoHS Directive for environmental protection.
Highlights & Features
- Universal AC input voltage
- Built-in active PFC circuit
- No load power consumption < 0.5 W
- 30 mm height low profile design
- IEC/EN 60335-1, IEC/EN 61558-1, and IEC/EN 61558-2-16 household appliance standards
- Wide operating temperature -30°C ~70°C (-40°C cold start)
Our product specialists are on hand to assist with product selection and guide you through the design cycle. We offer technical and commercial support.
Please contact us to arrange samples for evaluation, a quote, to discuss your application or request more information.
