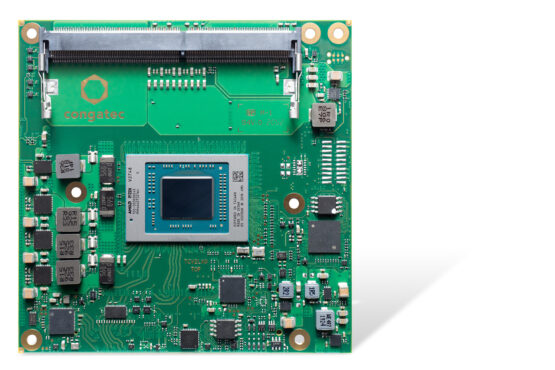

congatec – a leading vendor of embedded and edge computing technology – introduces the conga-TCV2, a brand new COM Express Compact Computer-on-Module based on AMD Ryzen Embedded V2000 processors. With double the performance compared to the earlier launched AMD Ryzen Embedded V1000, the module is setting a new performance per watt benchmark, which finds its sweetest spot in 15 Watt TDP designs[1]. This extraordinary low power platform performance has been validated using real-world cross-platform test suite Cinebench R15 nt. Compared to modules with AMD Ryzen Embedded V1608B processors, conga-TCV2 modules deliver a performance plus of 97% (V2516) to 140% (V2718) with up to 8 cores. Due to the new 7nm Zen 2 cores, single core performance also increased between 25% and 35%, making the new modules a perfect candidate for performance improvements in 24/7 connected and fanless embedded systems operating at the various industrial edges. Typical applications include multi-functional industrial edge gateways, digital signage systems, gaming terminals and infotainment platforms. With up to 40% more GPU capabilities[2] for up to 4x 4k60 graphics at 15 Watt and comprehensive GPGPU support, multi-headed medical imaging systems in the operating theater as well machine vision and machine learning systems are further target markets.
“While the new AMD Ryzen Embedded V2000 processor enhancements can be utilized in actively cooled systems with 54 Watt TDP, we see a significant number of customers with fanless and passively cooled systems operating at 15 Watt TDP or even lower. The goal to operate under such tight constraints is to enable highly rugged, sealed systems for reliable 24/7 operation in harsh environments. In those applications performance per watt improvements are welcomed with open arms, and the Zen 2 x86 CPU and the AMD Radeon graphics cores offer extraordinary scores in this area,” explains Martin Danzer, Director of Product Management at congatec.
Next to stationary equipment, solar powered stationary, mobile and autonomous systems also welcome the low power values of the new AMD Ryzen Embedded V2000 processor based Computer-on-Modules, which can be configured down to as low as 10 Watt cTDP. This is significant because the productive operation time without re-charging extends the lower the TPD is. Competing 10 Watt TDP platforms with 4 cores offer only half the core count, which puts them into an entirely different, significantly weaker performance league. Other 15 Watt TPD platforms also have just 4 cores but without the ability to scale down the TPD, which limits the platform balancing options. The AMD Ryzen V2000 Embedded processors, on the other hand, offer an ultra broad performance range from 10 Watt up to 54 Watt on the basis of this single processor architecture.
