High-efficiency 4W, DC/DC TracoPower, converters designed for industrial applications with wide input voltage range fill the gap between 3 and 6W converters.
The TMR 4 and TMR 4WI are a set of regulated 4 Watt DC/DC converters with either 2:1 (TMR 4) or 4:1 (TMR 4WI) input voltage range.
They come in a compact SIP-8 package featuring single and dual output models, I/O isolation voltage of 1600 VDC and protection against short-circuit and overload.

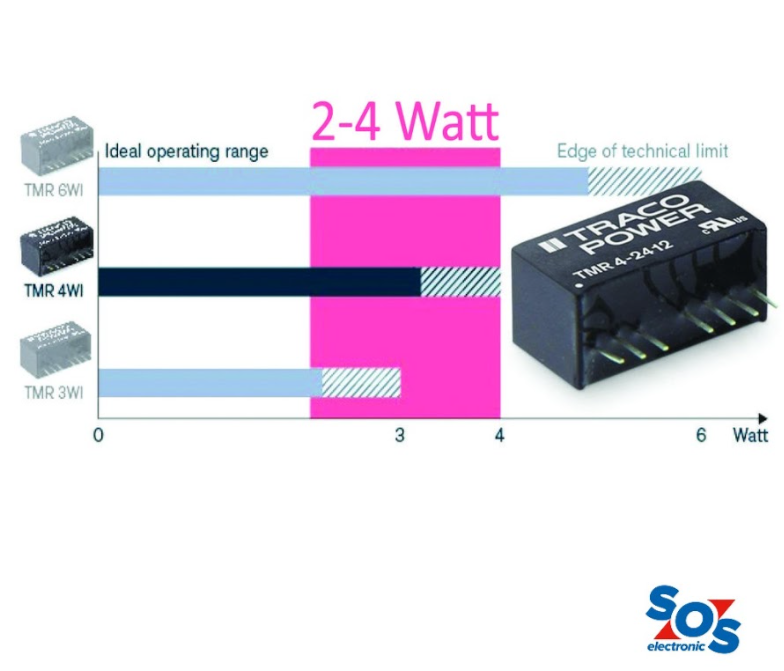

These converters fill the gap between existing 3W and 6W DC/DC converters. They offer a cost-efficient alternative to 5- and 6-Watt converters in applications where a 3-Watt converter would operate at the absolute technical limits (e.g. output power).
The intelligent design provides the efficiency of up to 87% and a temperature range of -40°C to +70°C without derating, which enables unrestricted use of these converter series in applications with demanding temperature requirements. Additionally, the integrated remote On/Off function offers a convenient way to control your application.
Certified according to the latest IEC/EN/UL 62368-1 industrial standard, the TMR 4 and TMR 4WI are designed to deliver high quality, cost-efficient and compact solution for many applications.
For more information, please visit webshop of SOS electronic or do not hesitate to contact them at [email protected]
