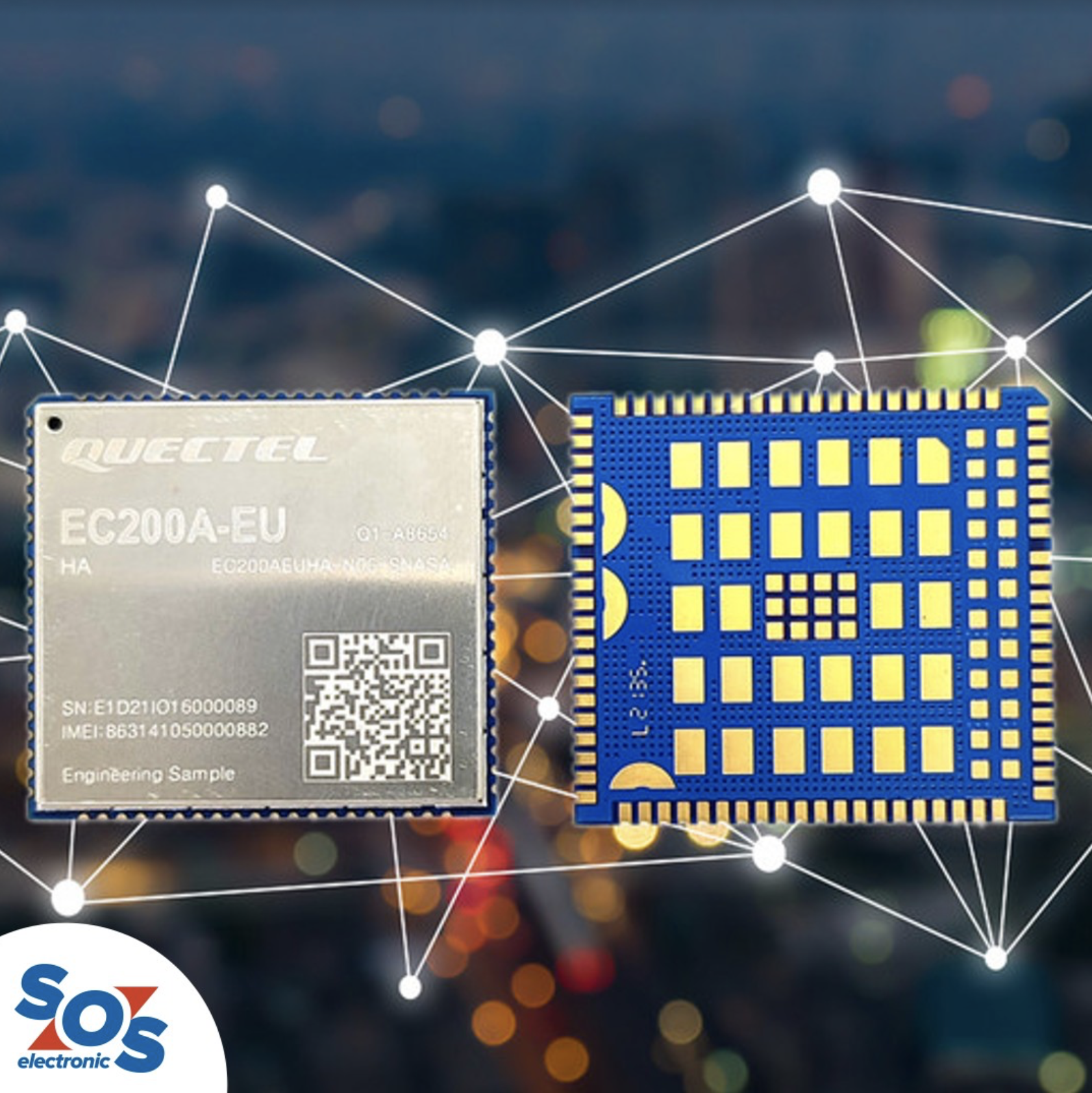

The Quectel EC200A line of LTE Cat 4 modules is designed specifically for M2M and IoT applications. It uses 3GPP Rel. 9 LTE technology and offers data rates of 150 Mbps downlink and 50 Mbps uplink.
PAVEL KOVÁČ SOS electronic Product Specialist More articles from the author
Key Benefits of Quectel EC200A:
- LTE Cat 4 module optimized for M2M and IoT applications
- Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
- FOTA update support
- MIMO technology
- Super cost-effective
Pavel Kováč, a product specialist specialising in communication technologies from SOS electronic, has put together a summary of the fundamental details concerning the LTE Cat 4 module of the EC200A series for you.
Main Features
Due to the Quectel EC200A’s pin compatibility with the EC21/EC25, the redesign process may be completed much more quickly while spending less money and effort. High volume production and on-time delivery are guaranteed by a better price level and a reliable delivery schedule. The module is backward compatible with UMTS/GSM networks, which is a basic requirement to have network coverage even in rural areas.
To accommodate the demands of product applications in many industries, EC200A now supports standard Mini PCIe packaging. The module uses laser engraving to provide a more appealing appearance, a sturdy metal texture, improved heat dissipation, information that is difficult to erase, and is better suited for automation requirements.
Low maintenance costs are guaranteed for service providers by improved features like FOTA (Firmware over the air). With this feature, the firmware can be updated to a new version across LTE, WCDMA, GSM, and GPRS networks as well as downgraded to the previous version. MIMO technology satisfies the requirements for data rate and connection reliability in modem wireless communication systems.
The module can be used for a variety of M2M and IoT applications, including industrial router, industrial PDA, rugged tablet PC, video surveillance, and digital signage thanks to a broad set of Internet protocols, industry-standard interfaces, and a wealth of features (USB serial drivers for Windows 7/8/8.1/10, Linux, and Android).
Design compatibility
The EC200A module is compatible with the UMTS/HSPA+ UC20/UC200T and Quectel LTE Standard EC2x/EG25-G modules. On the same PCB footprint, the compatible design supports the EC200A, EC2x/EG25-G, and UC20/UC200T modules.
Quectel LTE&UMTS; EVB Kit
Technical Materials Package:
- Hardware & software specifications
- Application notes
- Debug tools, download tools, test tools, EVB kit & USB drivers
- Approvals & test reports
- QNavigator
Main application areas of Quectel EC200A series:
- Telematics & Transport
- Energy
- Security
- Payment
- Smart City
- Gateway
- Industry
- Life & Healthcare
- Agriculture & Environment
SOS electronic have added a few modules from the Quectel EC200A series to their inventory. Visit their website to learn more about various Quectel products, including prices and current availability. Do not hesitate to contact them if necessary at: [email protected].
