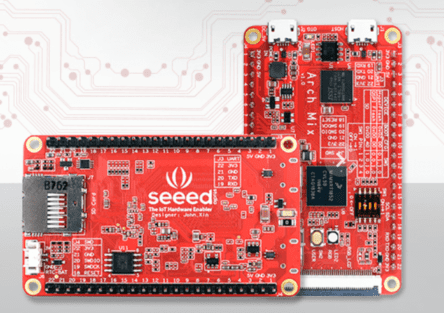

Arch Mix is a thin, lightweight development board based on NXP i.MX RT1052 processor(3020 CoreMark/1284 DMIPS @ 600 MHz). This development board comes pre-installed RT-Thread real-time operating system and built-in micro-python. Which makes it suitable for industrial control, especially for scenes with large code and high real-time application requirements.
The i.MX RT1052 is a new processor family featuring NXP’s advanced implementation of the Arm Cortex®-M7 core. Currently, the i.MX RT1052 is the highest performing Cortex-M7 solution delivering 3036 CoreMarks, which is 13 times better than the LPC1788 microcontroller. In addition to the high-speed performance it provides fast real-time responsiveness. The i.MX RT1050 also has rich audio and video features, including LCD display, basic 2D graphics, camera interface, SPDIF, and I2S audio interface.
The RT-Thread is an open source IoT operating system for embedded devices. The kernel has real-time multi-task scheduling, semaphore, mutex, mail box, message queue, signal etc. This is a lightweight system that loads quickly. For more detail about the RTOS, please refer to the Github Page.
Also, we are very excited to announce that there will soon be a Grove breakout board and MicroPython libraries available for use with Grove! This means that plug-and-play prototypes for industrial control and IoT projects will soon be possible, so stay tuned!
Features
- ARM® Cortex®-M7 600MHz microcontroller(NXP i.MX RT1052)
-
Comes with real-time operating system RT-Thread
-
Build-in micro-python
-
Ultra-fast system loading speed
-
Rich peripheral interface: RMII, CAN, I2C, UART, CSI, I2S, ADC, SPDIF IN/OUT, SWD
-
Smaller than other Demo boards of RT1052/1050: 67mm x 39mm
-
Cost-effective: Normally, development boards for RT1052 would cost around a whopping $90, only $29.9 for Arch Mix!!!
Application Ideas
-
Industrial Control
-
Smart Building
-
Industrial Human Machine Interfaces
-
Automation & Process Control
-
Robot
