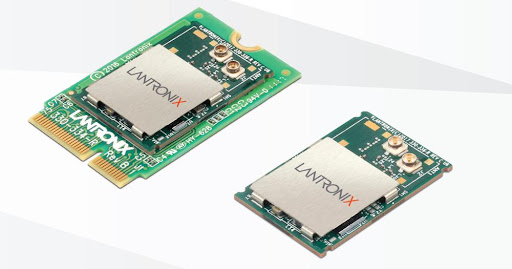

A new series of communication modules from Lantronix – xPico 270 IoT Gateway


Simple integration with the ConsoleFlow™, advanced security, industrial design, number of embedded network protocols – all of these are combined in the xPico 270 embedded IoT gateways from Lantronix. “It is a perfect choice for your industrial IoT solutions” says SOS electornic.

Lantronix has launched a new series of  integrated IoT gateway – xPico270. It is designed for consistent and secure Wi-Fi, Ethernet and Bluetooth connectivity.

Usage of this new module allows manufacturers to develop and deploy their intelligently connected products with reduced complexity and what is more important at a lower risk.

The manufacturer summarized the main features and also the typical application of the xPico 270 communication module and we, as an authorized distributor, decided to share it with you.

Secure Connection via Wi-Fi, Ethernet and Bluetooth

The XPC270100S gateway uses the Cypress 5G 802.11ac Wi-Fi technology. It provides dual-band 2,4GHz and 5.0GHz 802.11ac Wi-Fi connectivity management and enterprise security for optimal device performance and communication within noisy industrial settings.

In addition to a powerful wireless Wi-Fi, this module simplifies the deployment of robust Ethernet, Bluetooth and Bluetooth Low Energy (Bluetooth LE) connectivity without writing complex drivers. Its compact construction fits it into any design and can operate even in extreme environments.

Intelligent Networks and Advanced IoT Communication Engine

With the integrated xPico 270 network communication module and flexible system integration modes, you will simplify the development of embedded applications and speed up the launch of your device.

If you have your own MCU used in your application, then the xPico 270 can work as a network coprocessor. Or you can omit it completely and use the built-in MCU in xPico 270 and write a program using the provided SDK.

Field-tested TruPort® Serial technology supports the transparent transmission of hundreds of proprietary serial and standard Fieldbus protocols. In addition, TruPort® Socket technology enables complete control over multiple connections via TCP, UDP or TLS.

Cloud-based Centralized Management Service

Scalable and secure cloud-based device management for the xPico 270 embedded IoT gateways, ConsoleFlow™, combines complete control over the operation of these devices of any size with remote management and maintenance over the network to reduce total cost of ownership (TCO).

Wireless LAN Specifications

  • IEEE 802.11 a/b/g up to 54 Mbps; 802.11 n (1×1) up to 150 Mbps; 802.11ac up to 433 Mbps
  • Dual Band 2.4 GHz and 5 GHz,
  • 20, 40 and 80 MHz channel width with optional SGI
  • 802.11r fast roaming
  • Supports IEEE 802.11 d/h/i

The XPC270100S Lantronix module is currently available on order. Technical information, prices and delivery dates are available on SOS electronic website.

They will be happy to provide you more information, including technical advice on Lantronix products, at [email protected].

Source: Lantronix
