Are panel PCs, touch screens, or industrial PCs something you’re thinking about? Every option requires up to 15 minutes to assemble. The new display box kit from AAEON’s modular OMNI series opens up new options. Look up the most recent updates.
MIROSLAV PISKOR SOS electronic Product Specialist More articles from the author
The OMNI modular series offers 2 CPU box kits, a Display box kit, 7 sizes of LCD panels with a resistive or multi-touch PCAP touch panel, and 11 I/O modules.
Do you need a panel PC?
Insert SODIMM RAM module into the socket, connect 2.5” SSD and fasten it to CPU BOX kit. Connect 3 cables (LVDS, Combo and DIO) from the LCD kit to CPU BOX kit, click CPU BOX kit into LCD kit and fix 3 screws – done.
Do you need a touch monitor?
Connect 3 cables (LVDS, Combo and DIO) from the LCD kit to the Display BOX kit, click Display BOX kit into LCD kit and fix 3 screws – done.
Do you need an industrial PC?
Insert SODIMM RAM module into the socket, connect 2.5” SSD and fasten it to CPU BOX kit. Click CPU BOX kit into M0421550A0 bottom cover and fix 3 screws – done.
CPU box kit
CPU boxes are based on Intel processors from Celeron N2807 to Core i7-6600U. All kits feature fan-less design, wide power supply voltage 9 to 30V DC and ambient operating range from -10 up to +55°C. CPU boxes can be transformed into a box PC by adding a bottom cover. Kits are shipped without RAM and SSD. But don’t worry, we have a solution – industrial Apacer RAM and SSD.
CPU box kits can run any Linux distribution with kernel 2.6 or newer or Windows 7, 8 or 10. In case of Windows OS, please consider using Win10 IoT Enterprise LTSB 2016, which is optimised for industrial applications.

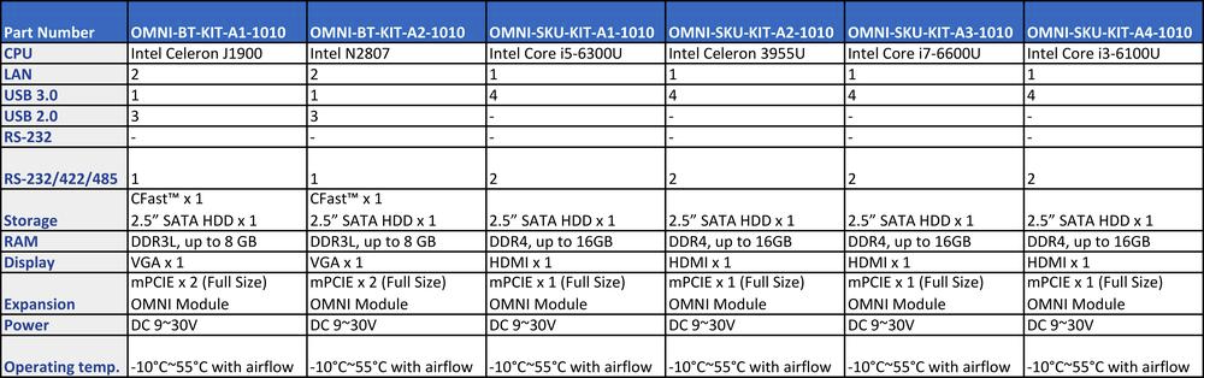

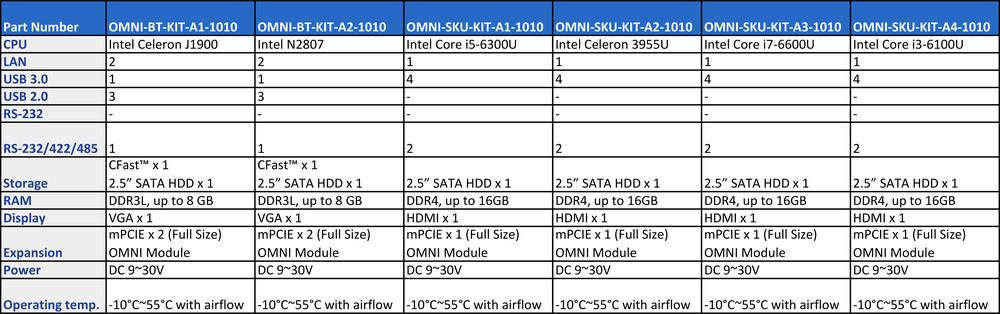

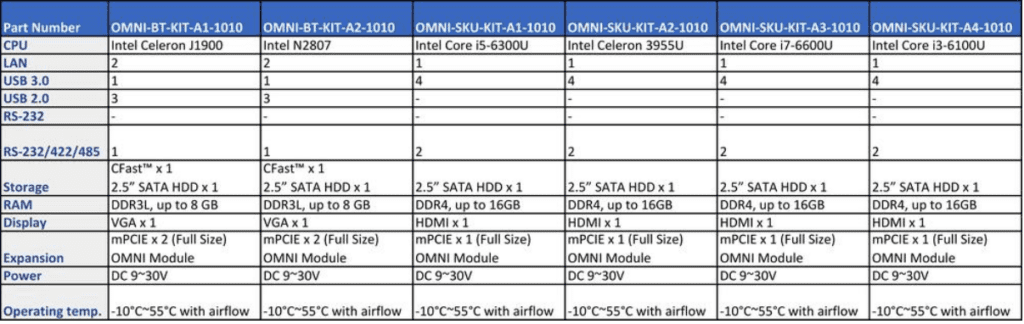

Please, see the CPU BOX kit overview for more information.
Display BOX kit
The kit allows you to connect the monitor to a PC via HDMI or VGA and USB (touch panel). The touch panel drivers support Windows and Linux operating systems; you can find them on the enclosed CD.
LCD kit
– 7 LCD panel sizes – 10.4”, 12.1”, 15”, 17” and 19” with 4:3 aspect ratio and 15.6” and 21.5” with 16:9 aspect ratio
– Robust aluminium front frame
– Full-flat front frame design prevents accumulating of water and dust
– IP65 rated front panel – 5-wire resistive and multi-touch PCAP touch panel

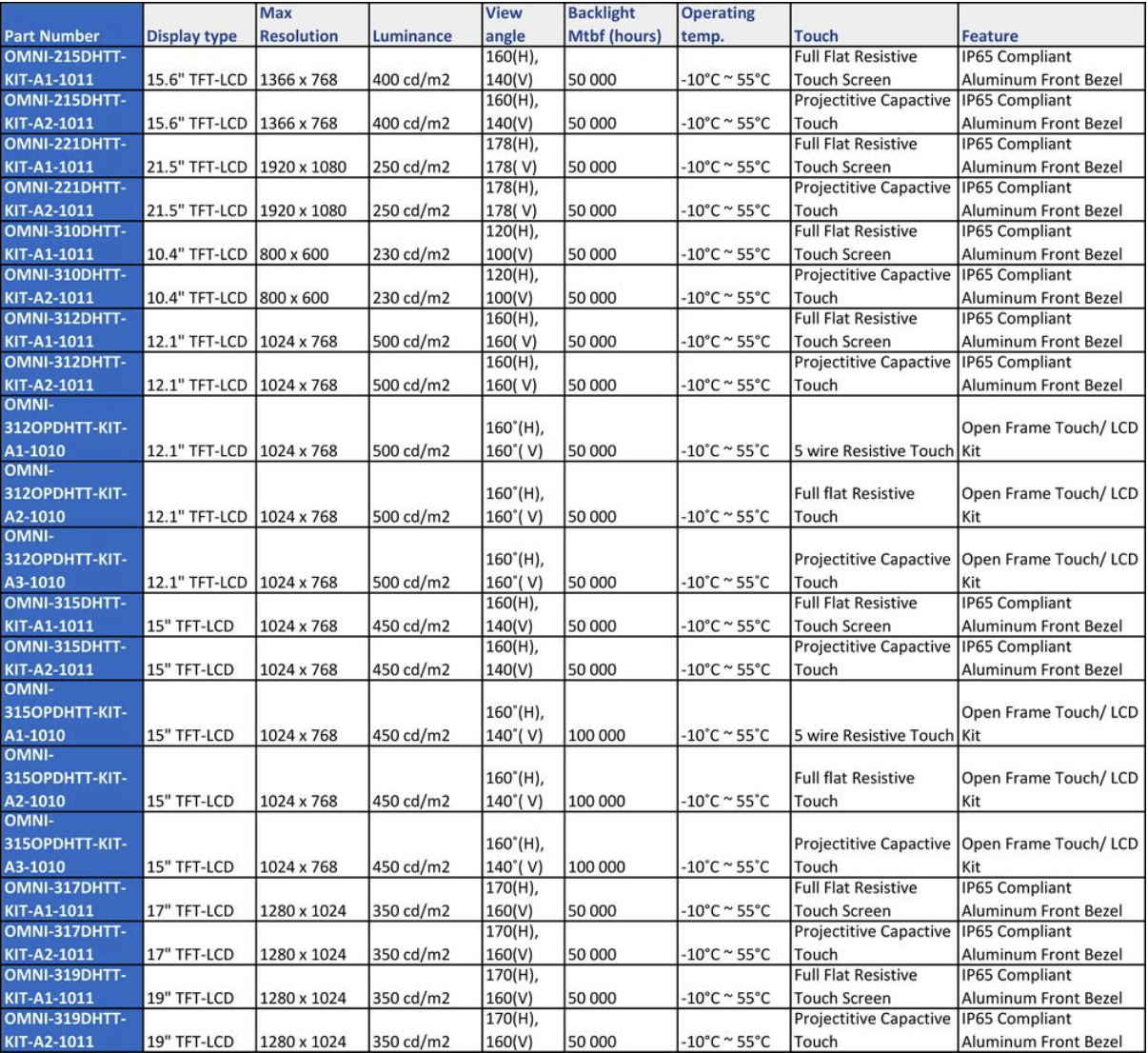

Please, see the LCD kit overview for more information.
I/O Modules
Currently, AAEON offers 11 I/O modules. Installation is effortless. Remove the expansion connector cover on the CPU BOX kit, plug the module into it and fix it with 2 screws. All required drivers are available on the AAEON web.
I/O modules are compatible with all CPU BOX kits, but a 15” or bigger LCD panel is required for installation because it is impossible to fix them on a smaller LCD kit.

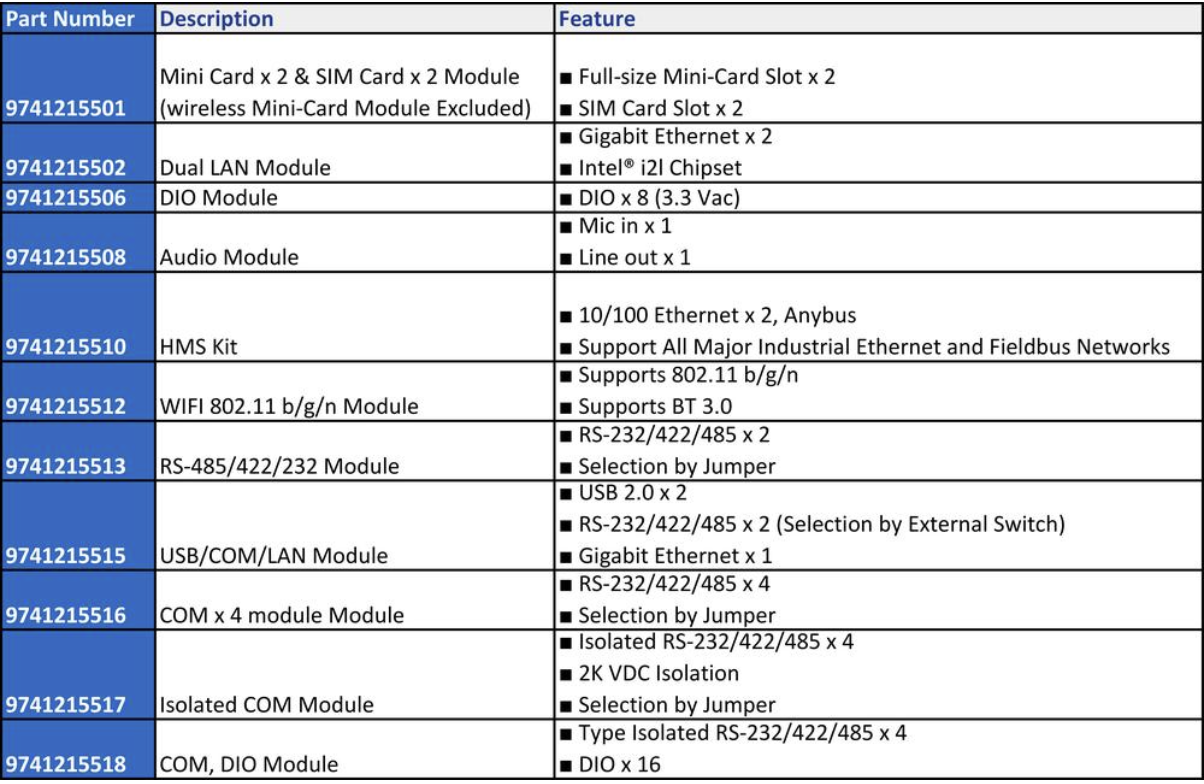

Please, see the I/O modules overview for more information.
Features
- CPU BOX kits, Display BOX kit, and LCD kits or assembled together
- Wide processor range, from Intel Celeron N2807 to Core i7-6600U
- Fan-less cooling
- Full-flat front frame design, which prevents accumulating of water and dust on the display
VIDEO: AAEON OMNI Series: Modular Panel PC
Featuring a modular design, the OMNI Series can be fitted with several modules to expand its base capabilities.
For further information about AAEON products, please contact SOS electronic sales representatives at [email protected]. Do not want to miss out on any technical news? Follow SOS electronic on social media Facebook, LinkedIn, YouTube, Twitter, and Instagram.
